Questions and Answers

1. What types of models are in the collection?

The Department of the Navy Ship Model Collection is composed of primarily full, exhibition-type, scale models of U.S. naval vessels 1883 - present. Usually only the exterior is represented. This traditional type is popularly called a "builder's model." So-called builder's models are executed to a specific degree of scope and accuracy. They are made using the builder's plans of the real ship. Usually the models were made while the real ship was being designed and built. Navy models are made in fractional scales derived from the inch. Many are 1/4 inch to one foot scale (1/4" = 1' or 1:48) and 1/8 inch to one foot scale (1/8" = 1' or 1:96).

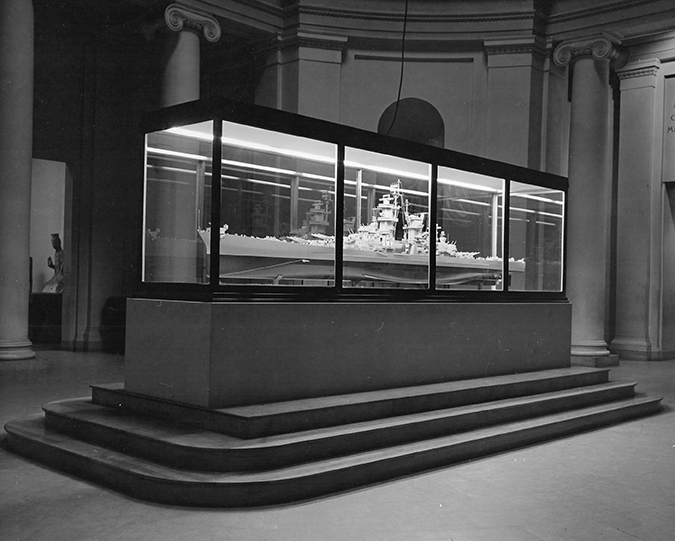

The smallest model in the collection is 1.5 inches (3.8cm) long, the largest is 345 inches (8.763m) long.

Other kinds of models represented in the collection include: designer's half-hull models, 1813-1960; World War II identification models in 1:250, 1:500, and 1:1200 scale; shipboard machinery space models; training models; drawing room design models; U.S. Marine Corps tracked vehicles, 1943 - present; and David Taylor Model Basin wind tunnel aircraft test models, ca. 1913-1949.

Associated with the shipbuilding community of the U.S. Navy, our collection has few models of naval aircraft, weapons, merchant ships, or foreign ships.

2. What is the scope of the collection?

The Navy began building models of new ships in 1883, so there are not many exhibition models pre-dating that time. After 1883, models were ordinarily constructed of one ship of each new class of warship. However, the class had to be deemed a significant engineering departure from its predecessors. For a variety of reasons, some classes of ships were never modelled. On the other hand, in addition to experimental craft, our collection does have a number of models representing ships that were never built.

3. What is the range of the collection?

The official Department of the Navy model collection does not include every model the Navy owns. Several Navy museums borrow Navy Department models and also maintain their own collection. Here is a partial list of Navy museums that have separate model collections:



The Navy Museum
901 M Street S.E.
Washington, DC 20374-5060
202-433-4882


Naval Academy Museum
118 Maryland Avenue
Annapolis, MD 21402
410-293-2108


National Naval Aviation Museum
Naval Air Station
Pensacola, FL 32508
904-452-3604


Nautilus Memorial, Library &  Museum
Naval Submarine Base
Groton, CT 06349
203-449-3174



Hampton Roads Naval Museum
1 Waterside Mall
Norfolk, VA





Naval War College Museum
Newport, RI 02840
401-841-40
2





Naval Undersea Museum
Keyport, WA 98345
360-396-2894














4. What was the original purpose of the collection's models?

Most of the models in the Navy Department collection were made as visual aids to help people understand what a new ship would look like. These are called exhibition models. When a warship was designed, several types of models were also made to test different characteristics

5. Where are display sites?

Listed locations have been loaned one or more U.S. Navy Department ship models. Precedence has been given here to sites with relatively easy public access and those with a larger quantity of Navy models. Many states have more than one site, but only one has been given here. The quality of models varies and locations are subject to change.





U.S. Locations


Alabama
USS Alabama Memorial Park
Mobile

Arizona
Phoenix Central Library
Phoenix
California
National Maritime Museum
San Francisco

Connecticut
Nautilus Memorial & Submarine Force
Library & Museum
Groton

District of Columbia
Navy Museum
Washington Navy Yard
Washington
Florida
Florida State Museum
Tallahassee


Georgia
Naval Supply Corps Museum
Athens



Hawaii
Bowfin Submarine Museum and Park
Honolulu



Illinois
Naval Training Center
Great Lakes



Indiana
Evansville Museum of Arts and Science
Evansville

Iowa
State Capitol
Des Moines


Kansas
Wichita-Sedgwick County
Historical Museum
Wichita



Louisiana
USS Kidd & Nautical Center
Baton Rouge



Maine
Maine Maritime Museum
Bath



Maryland
U.S. Naval Academy Museum
Annapolis



Massachusetts
Peabody Essex Museum
Salem



Michigan
Gerald R. Ford Museum
Grand Rapids



Mississippi
State Historical Museum
Jackson



Missouri
Naval Reserve and Readiness Center
Kansas City


Montana
Naval and Marine Corps Reserve Center
Billings

Nebraska
Department of Naval Science
University of Nebraska
Lincoln


Nevada
Nevada State Museum
Carson City



New Hampshire
Portsmouth Naval Shipyard
Portsmouth



New Mexico
National Atomic Museum
Albuquerque



New York
Intrepid Museum
New York City



North Dakota
Fargo Public Library
Fargo



Ohio
Neil Armstrong Air & Space Center
Columbus



Oklahoma
Kirkpatrick Center
Oklahoma City



Oregon
Oregon Historical Society
Portland



Pennsylvania
Franklin Institute
Philadelphia



Rhode Island
Naval War College Museum
Newport



South Carolina
Patriots Point Naval & Maritime Museum
Mt. Pleasant

South Dakota
South Dakota Battleship Memorial
Sioux Falls


Tennessee
Tennessee State Museum
Knoxville



Texas
Admiral Nimitz Museum State Historical Park
Fredericksburg



Virginia
Hampton Roads Naval Museum
Norfolk



Washington
City of Bremerton
Bremerton



West Virginia
Naval and Marine Corps Reserve Center
Moundsville



Wisconsin
Naval & Marine Corps Reserve Center
Green Bay



 Non-U.S. Locations




Australia
National Maritime Museum
Sydney

Bermuda
Bermuda Maritime Museum
Mangrove Bay
New Zealand
Canterbury Museum
Christchurch


6. What are the major model materials?

Official Navy models are mostly "scratch-built" from wood and metal. Big portions of the model, like the hull and superstructure, are usually made from large pieces of pine, mahogany, or basswood. Smaller parts are made from aircraft plywood, brass, and copper. Plastic is rarely used. Parts are silver-soldered or attached together using screws, metal pins, and epoxy, white, or hide glues. Materials that last a long time and resist decay and corrosion are preferred. More information is available about model-building materials.

7. What are model builders?

Today, Navy models are made under contract by professional model building firms. The Navy's Bureau of Construction and Repair made all of its models in-house until about 1910. From about 1910 until 1980 exhibition models were made for the Navy in naval and commercial ship yard model shops. With the general disappearance of ship yard model shops, almost all Navy models are now made by contract model builders. Our staff is able to make exhibition models under special circumstances.

8. Where are models of old ships made?

We occasionally make models of ships pre-dating 1883 for research, to fill in gaps in the collection, or to experiment with model conservation techniques. Navy museums sometimes independently commission models of older ships in order to enhance a particular exhibit. For a related answer, see also "Range of the Collection".

9. What models are made by the Gibbs and Cox Company?

The Gibbs & Cox Company, a ship design firm, maintained an extensive model workshop adjacent to their offices in New York City. Between about 1939 and 1962 their model shop made a limited number of models, primarily of ships. The U.S. Navy commissioned about 20 major models of its latest warships. Most of the models were ordered during World War II, but were not completed until after the war.

Some model builders and curators believe that Gibbs & Cox models are, arguably, the very finest examples of the steel ship modelers art ever to be seen. The United States Navy is very proud to own most of the exhibition ship models made by Gibbs & Cox.

This alphabetical listing includes only the first-class Gibbs & Cox models in the Navy collection. The collection also has many Gibbs & Cox half-hull plating models, machinery space models, demonstration models, and drawing room models.

Drawing room models usually depicted the ship from the waterline upward and represented only major elements on the exterior of the ship. Drawing room models were used as tools during the ship design process. They were usually not painted in colors and were subject to alterations as the design progressed.

Display locations are subject to change.

U.S. Navy Ship Models built by Gibbs & Cox Company

10. How do you buy, sell, donate and dispose of a model?

Buying models: Our office commissions models to be built of modern U.S. Navy ships. These models must be built to our specifications. Price quotes and schedules are asked of several qualified model building firms and our purchasing department usually awards the purchase order to qualified vendor offering the lowest price and the best delivery schedule. If you are a professional model builder and wish to be contacted regarding Navy ship model building commissions, please contact our office.

Selling models: As a component of the federal government, the U.S. Navy does not sell or repair models for the public. Official models are never sold, auctioned, or given away.

Donating models: Occasionally our office accepts models donated by the public to the collection from the public. The model must fill a need within the collection, conform to the general scope of the collection, and be of reasonable quality and durability. Donations must be without restriction. Therefore, the Curator may chose to display the donation, place the item in storage, trade the item, or dispose of the donation at any time. The Office of the Curator of Ship Models does not provide monetary appraisals of ship models and cannot advise anyone regarding the tax implications of charitable donations. Monetary appraisals of ships models is referenced elsewhere in our web site. If you are interested in donating a model to the collection, please contact us.

Some galleries which advertise that they sell finished ship models are:

Lannan Ship Models
540 Atlantic Avenue
Boston, MA 02110
(617) 451-2650



David Air
8 Beach Street
New York, NY 10013
212-925-7867


Arrangements Inc.
P.O. Box 126
Mt. Kisco, NY 10549
914-238-1300



Oceanart
4330 San Michell Court
Kelowna, BC Canada V1W 2J3
604-764-40177


American Marine Model Gallery
12-SS Derby Street
Salem, MA 01970
508-745-5777


Seacraft Classics
7850 Evans Road Suite 109
Scottsdale, AZ 85260
800-356-1987


Dockyard
P.O. Box 303
Hamilton, NY 13346
315-824-2462


Wooden Ship Models
427-3 Amherst Street Suite 132
Nashua, NH 03064
603-882-8711




11. How do you loan models?

Available Navy ship models may be temporarily loaned to federal agencies; state and local governmental activities; and qualifying, established, non-profit and public educational institutions under special agreements. Models cannot be loaned to individuals, profit-making enterprises, or to ship reunions.

If you are a qualifying institution and are interested in learning more about the ship model loan process and requirements, please contact:

Office of Congressional and Public Affairs
Naval Sea Systems Command
2531 Jefferson Davis Highway
Arlington, VA 22242-5160 (703) 602-1575

12. How do I learn about a particular model?

To find out if the Navy collection has a model of a particular ship, please write to us:

Office of the Curator of Ship Models
Naval Surface Warfare Center, Carderock Division
9500 MacArthur Boulevard
West Bethesda, Maryland 20817-5700 USA

13.  How do I get a copy of: Fouled Anchors: The 'Constellation' Question Answered?

In 1991 our office wrote a technical report finding that the ship Constellation displayed in Baltimore was not a frigate of 1797, but a sloop-of-war built in 1853. Copies of our 200 page report, Fouled Anchors: The Constellation Question Answered (1991) can be obtained for a fee through the Department of Commerce, National Technical Information Service, 5825 Port Royal Road, Springfield VA 94942; (703)487-4650. Ask for report AD A241-916. A PDF version of the report and some related articles can be downloaded from the following links:

14. Can I visit the curator of Navy ship models?

The David Taylor Model Basin is part of the Naval Surface Warfare Center, Carderock Division Headquarters, located in West Bethesda, Maryland. Because security classified tests of modern naval ship designs are frequently performed, the Center is not accessible for casual, general visiting.

Those wishing to tour the Center should schedule an appointment with the Public Affairs Office at 301-227-4465, Email: CRDIVCPAO@navy.mil. Those wishing to visit only the exhibition ship model unit should schedule an appointment with the Curator at 301-227-1140. Visitors are welcome, workload permitting.

There is no all-day public transportation to the Naval Surface Warfare Center in West Bethesda, MD. Private automobile is the best way to reach the location and travel within the multi-acre Center.

All visitors must be U.S. citizens, be at least fourteen years old, and must have picture identification. No cameras or recording devices are allowed.

15. What if I am a ship model building hobbyist?

There are a number of American and foreign periodicals available about ship model building and your local library can help you find them. There are many local ship model building clubs and several regional groups of specialized ship model associations.

For more information about clubs contact the Secretary, Nautical Research Guild.

16.  How do you repair ship models?

To avoid shipping problems, you will probably want to have your model repaired locally. Check with a local hobby shop for ship model builders in your area or contact the Secretary, Nautical Research Guild.

17. How do you appraise ship models?

As an agency of the federal government, our office does not provide for the public monetary appraisals of ship models. There are several commercial enterprises that offer this service. Some of them are:

Sara Conklin
530-836-1762
shipqueen@gotsky.com

American Marine Model Gallery

12-SS Derby Street
Salem, MA 01970
508-745-5777

Mystic Maritime Gallery
Mystic Seaport Stores, Inc.
Mystic, CT 06355
203-572-8524

Arrangements Inc.
P.O. Box 126
Mt. Kisco, NY 10549
914-238-1300

18. What ship models are in the collection?

Key to Model Types

EXH - Exhibition Models. Museum-style display models. Quality varies
DRA - Drawing room models. Waterline models depicting only major superstructure & deck features. Little detail. Used for reference by Bureau of Ships designers during WWII.
HAL - Half hull models
REC - Recognition models. Small-scale waterline models formerly used for learning ship identification. Usually factory-made and not highly detailed.
TEC - Technical models made for test purposes
MOD_LEN is the length of the model in inches

List of Models

Please understand that the Office of the Curator of Ship Models is not a museum. Other than small recognition and half hull models, relatively few major models are located at Bethesda. Most are loaned out to other institutions. For more information about individual models, please email the Curator of Ship Models at nswccdcurator@navy.mil.

PLEASE NOTE:  THE CURATOR OF SHIP MODELS DOES NOT HAVE ANY SHIPS PLANS OR MODEL PLANS.

A good place to start looking for ships plans is the U.S. National Archives and Records Administration, Record Group 19: https://www.archives.gov/research/guide-fed-records/groups/019.html

The official history and photos  of most U.S. naval vessels can be found at: https://www.history.navy.mil/

19. What does "museum quality" mean?

The term "museum quality" is sometimes used to describe a model which, in the speaker's opinion, is an example of superior work. "Museum quality" is a subjective appraisal with no official definition within the museum community.

20. About plastic model kits

Regardless of the materials from which they are made, model kits are a good way to learn about maritime history, ships, ship construction, to develop skills, and to have fun. Every member of our staff built model kits in his youth. We encourage you to contact a local hobby shop or surf the web to find out more about model kits of all types.

Some sites of interest related to plastic model ship model building include:

International Plastic Modelers' Society (IPMS)
Nautical Research Guild
Seaways' Ships in Scale Magazine
